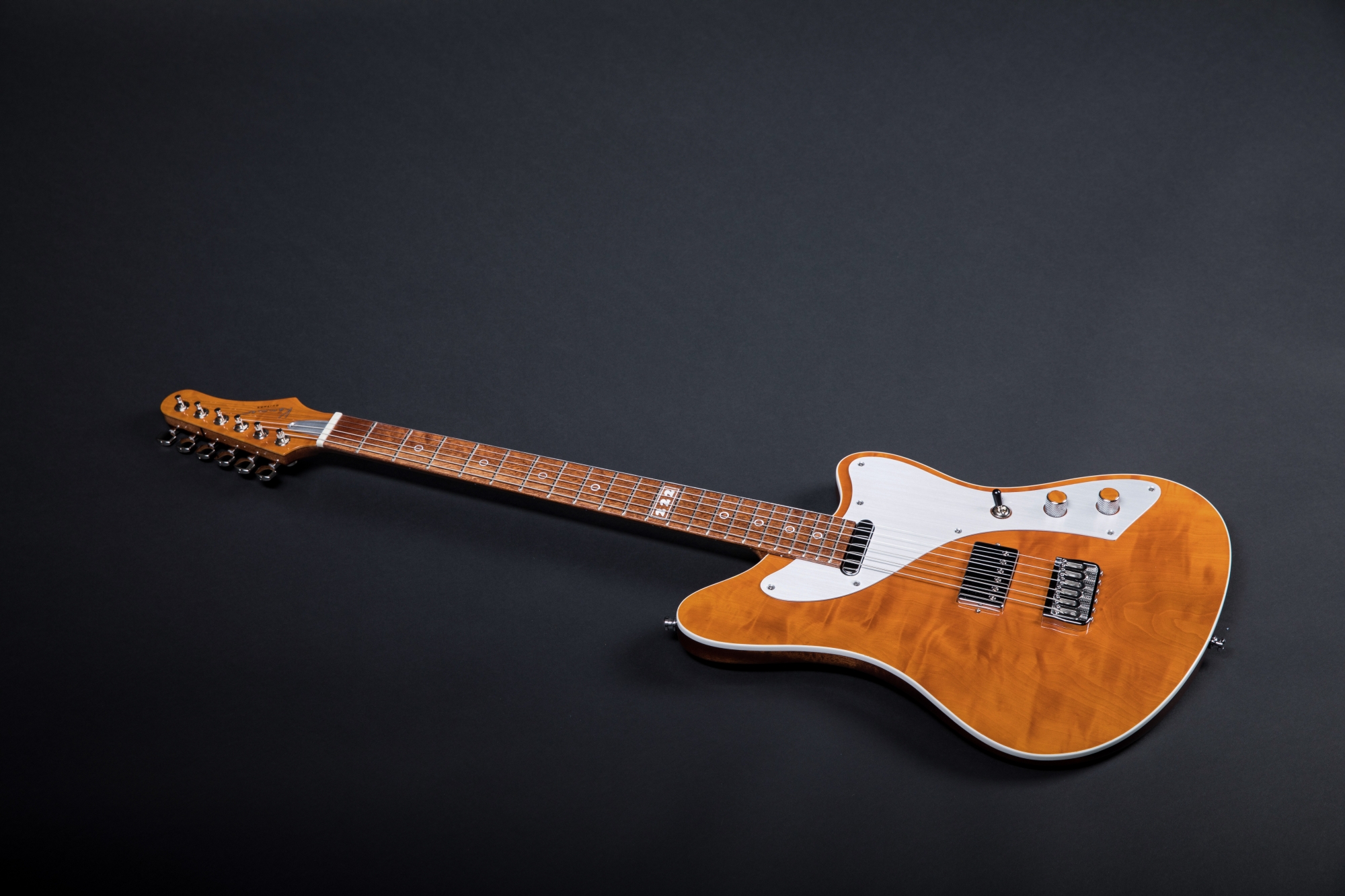

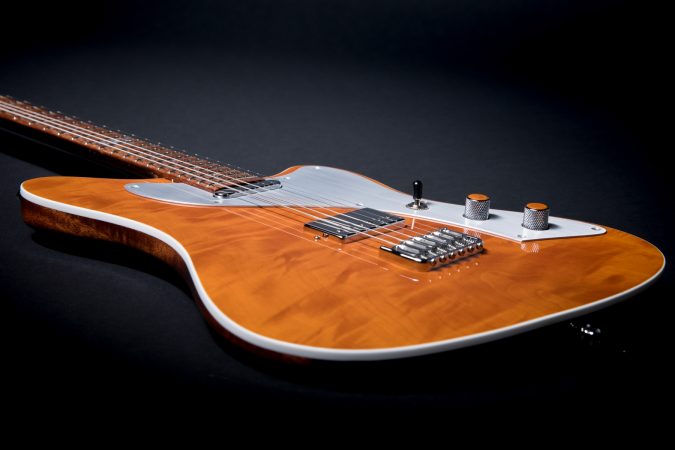

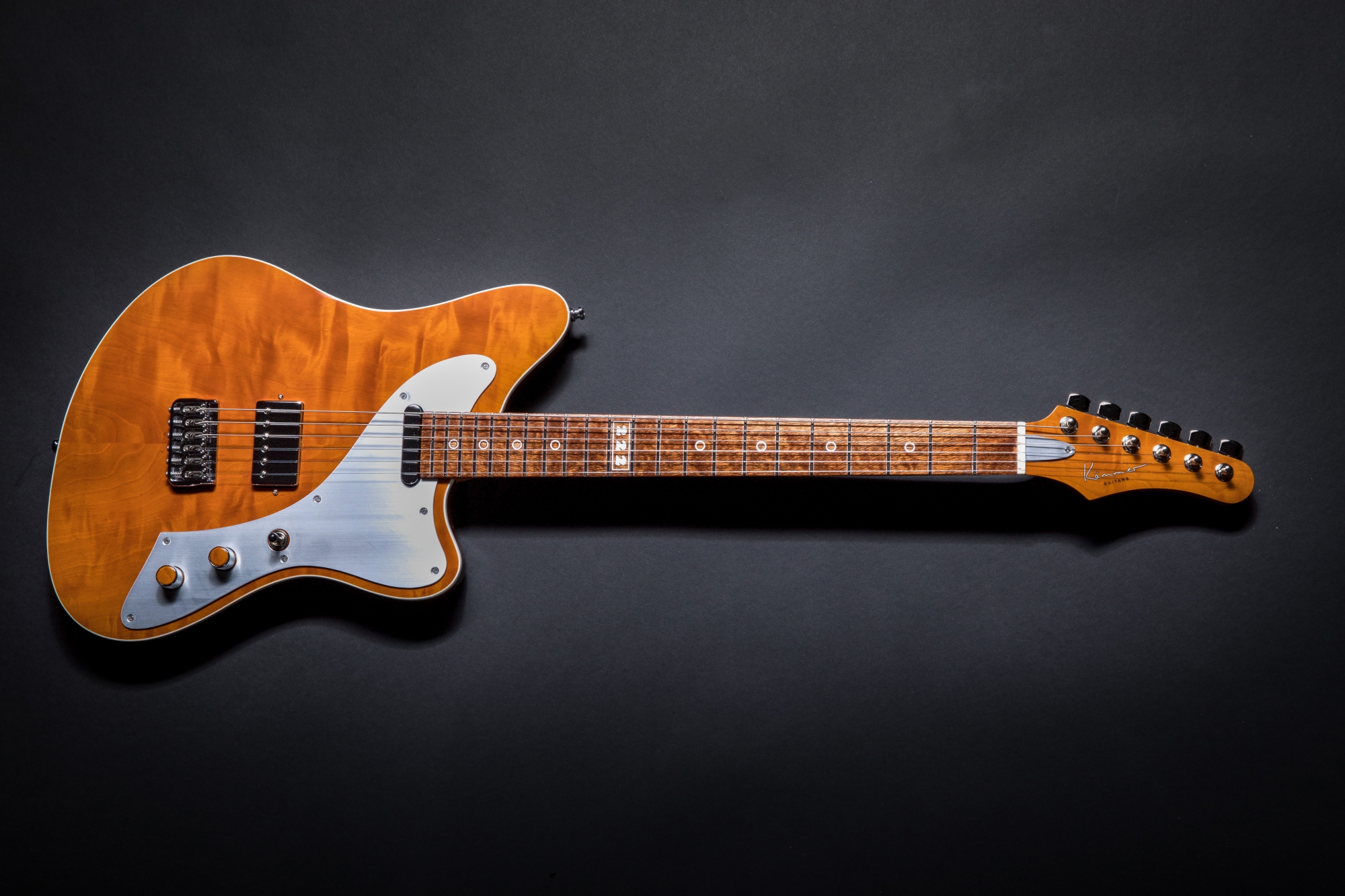

'MODEL 222'

Elegant yet tough in looks, simple yet sophisticated in design. The '222' has it all. With a slim body of only 38 mm and a thin smooth neck this is a lightweight and comfortable guitar. But that doesn’t come at the cost of tone! With a careful hand-picked selection of wood the '222' sounds tight and has a great sustain.

Specification

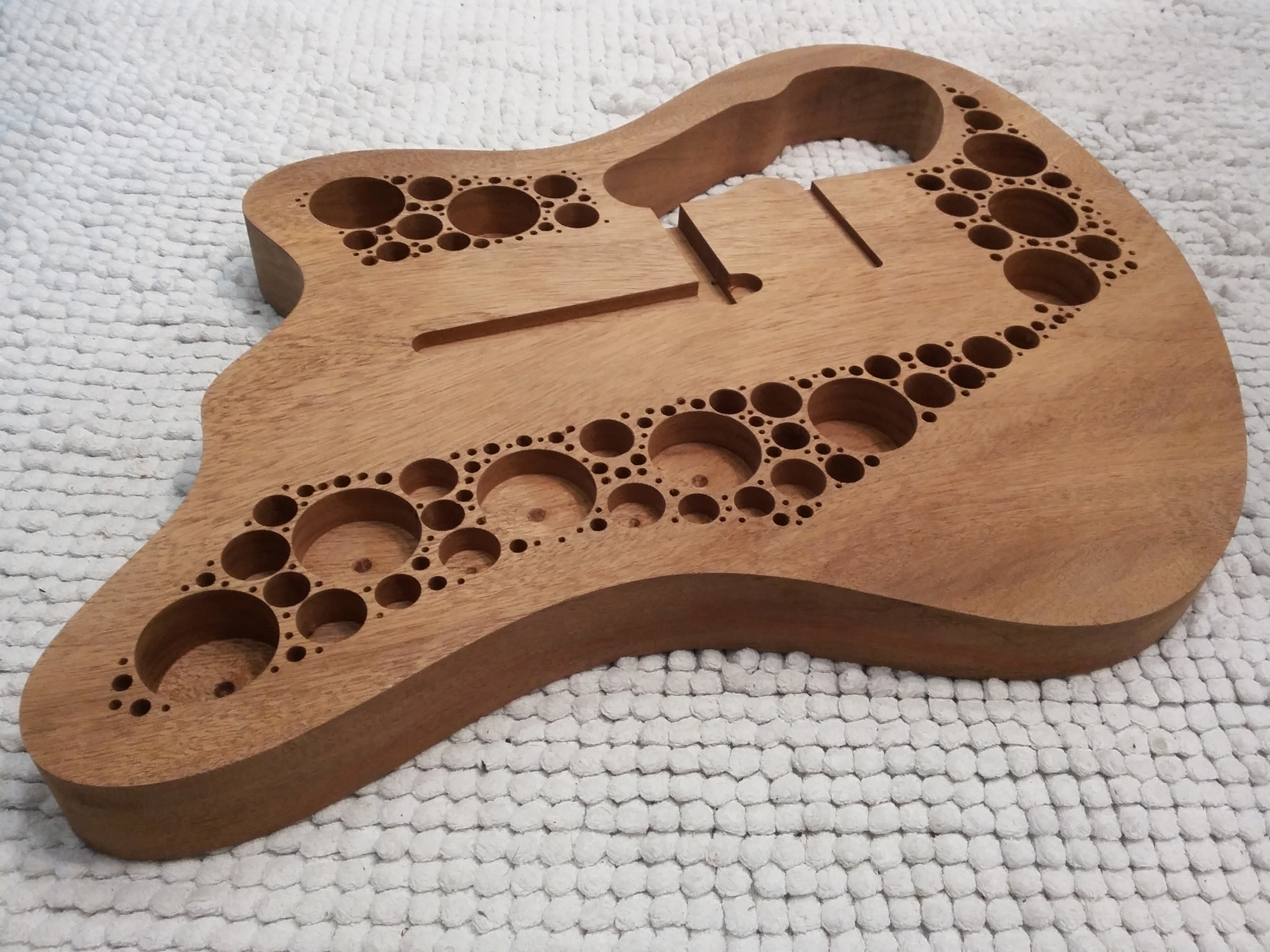

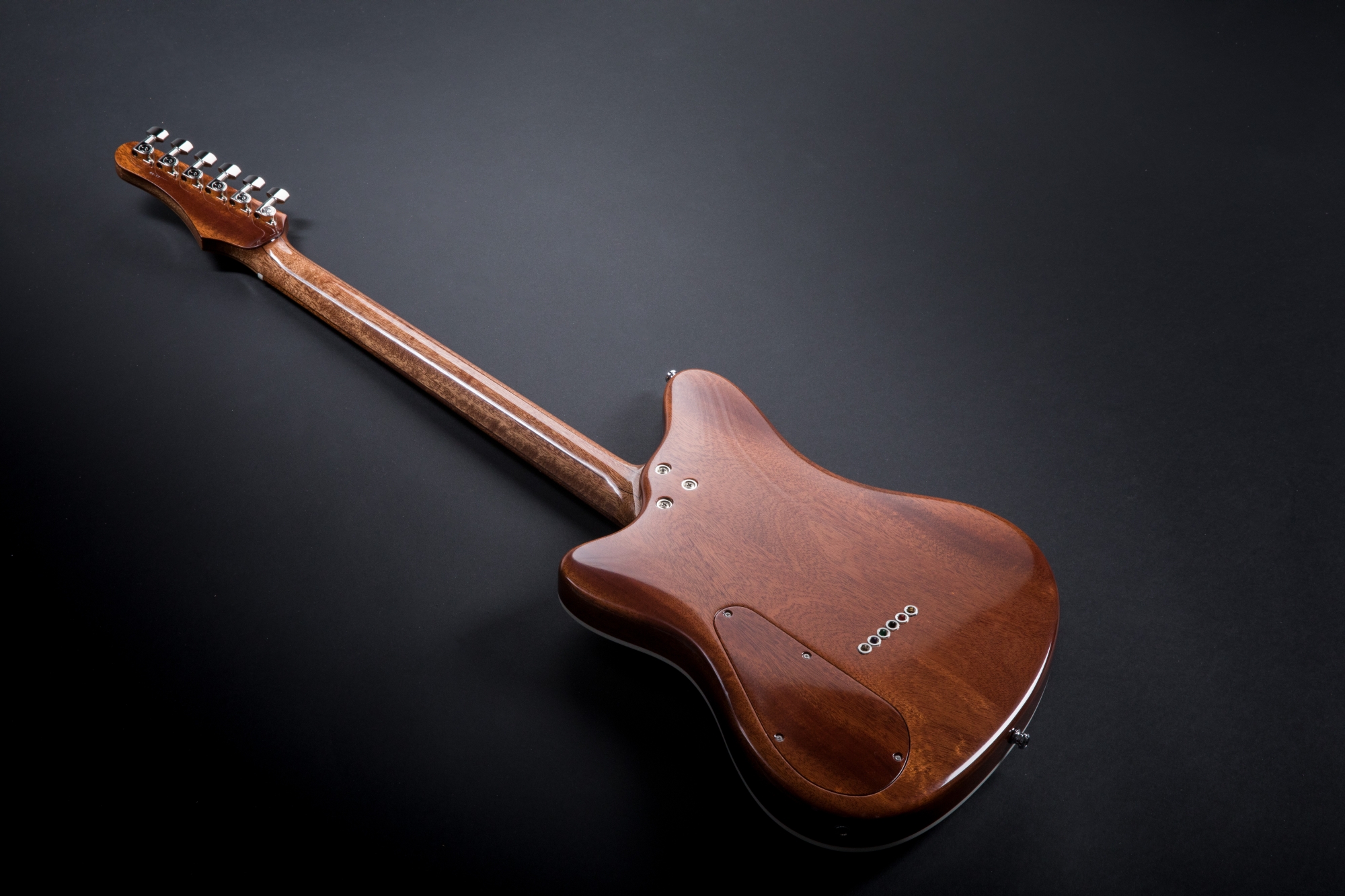

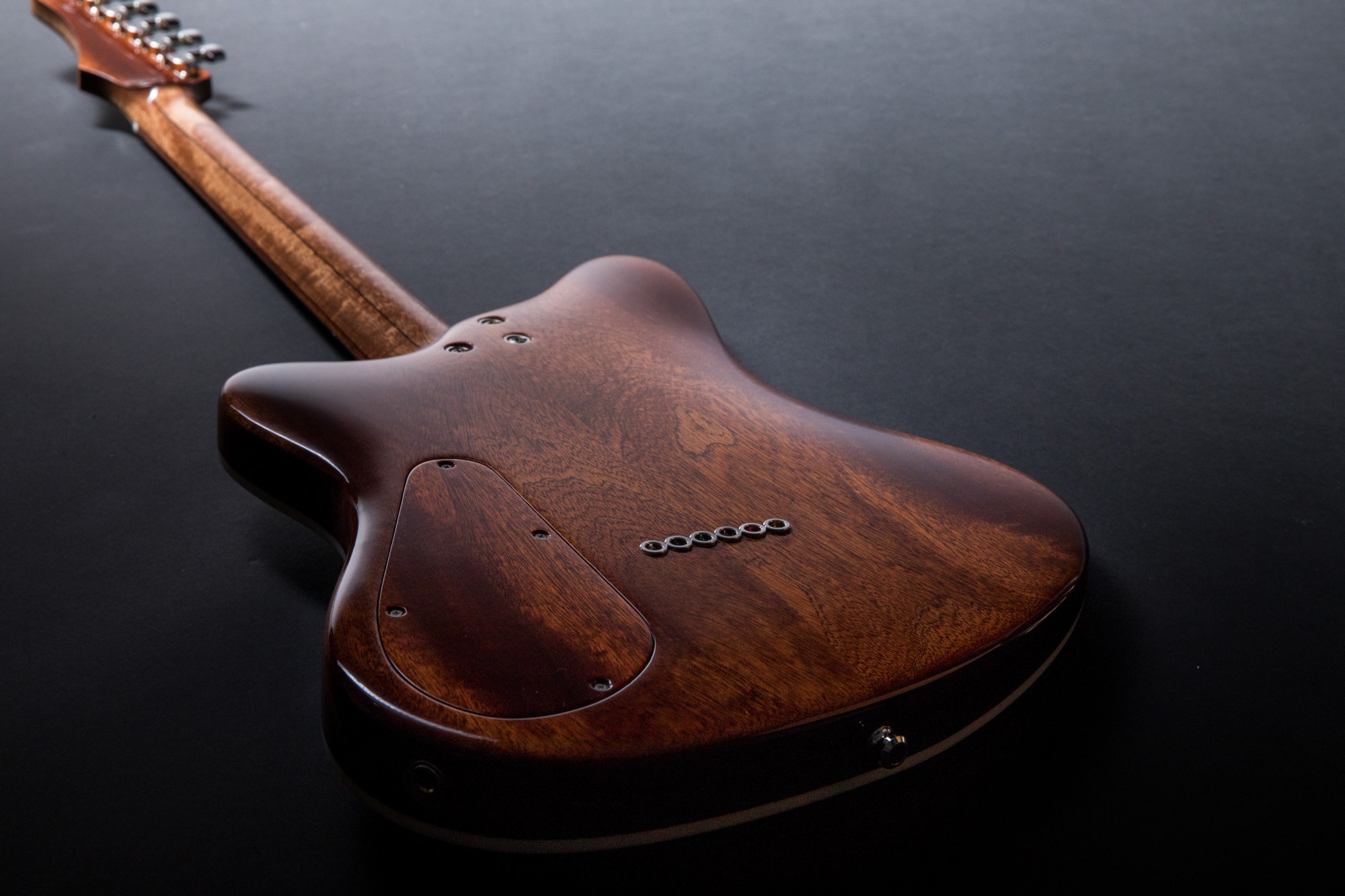

BODYMahogany, chambered
TOPPearwood

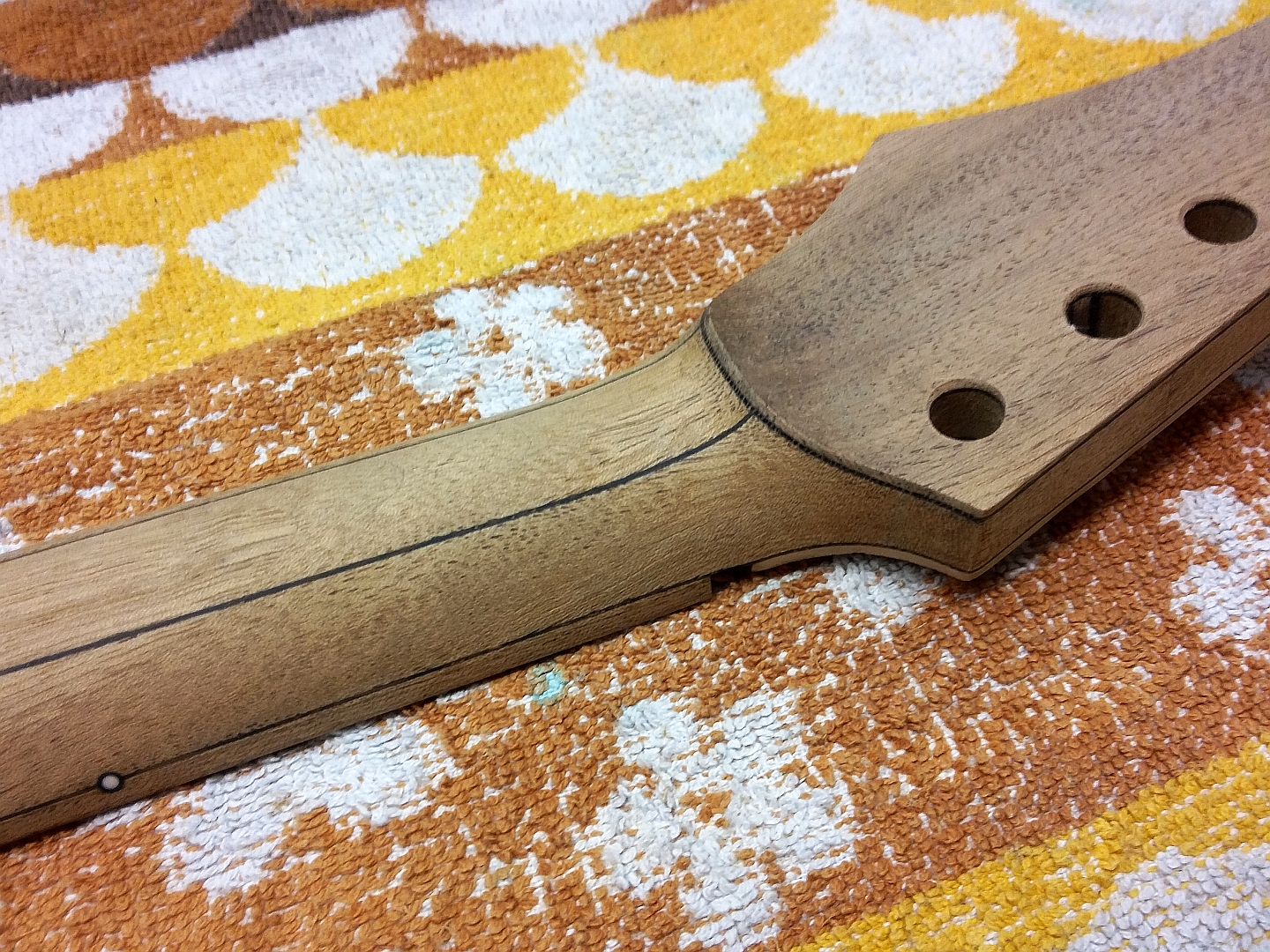

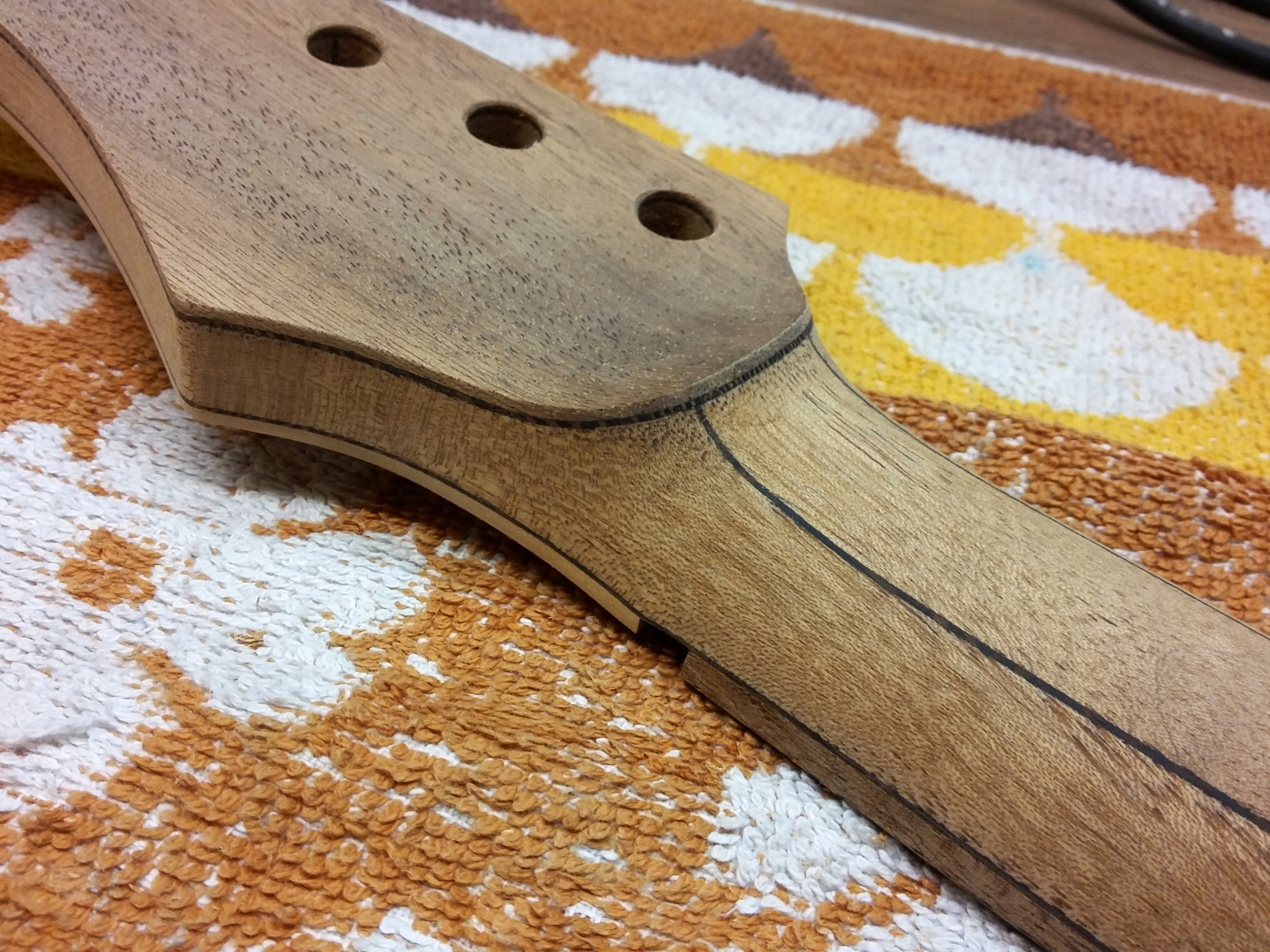

NECKMahogany, 3-Piece Lamination
Bolt-On

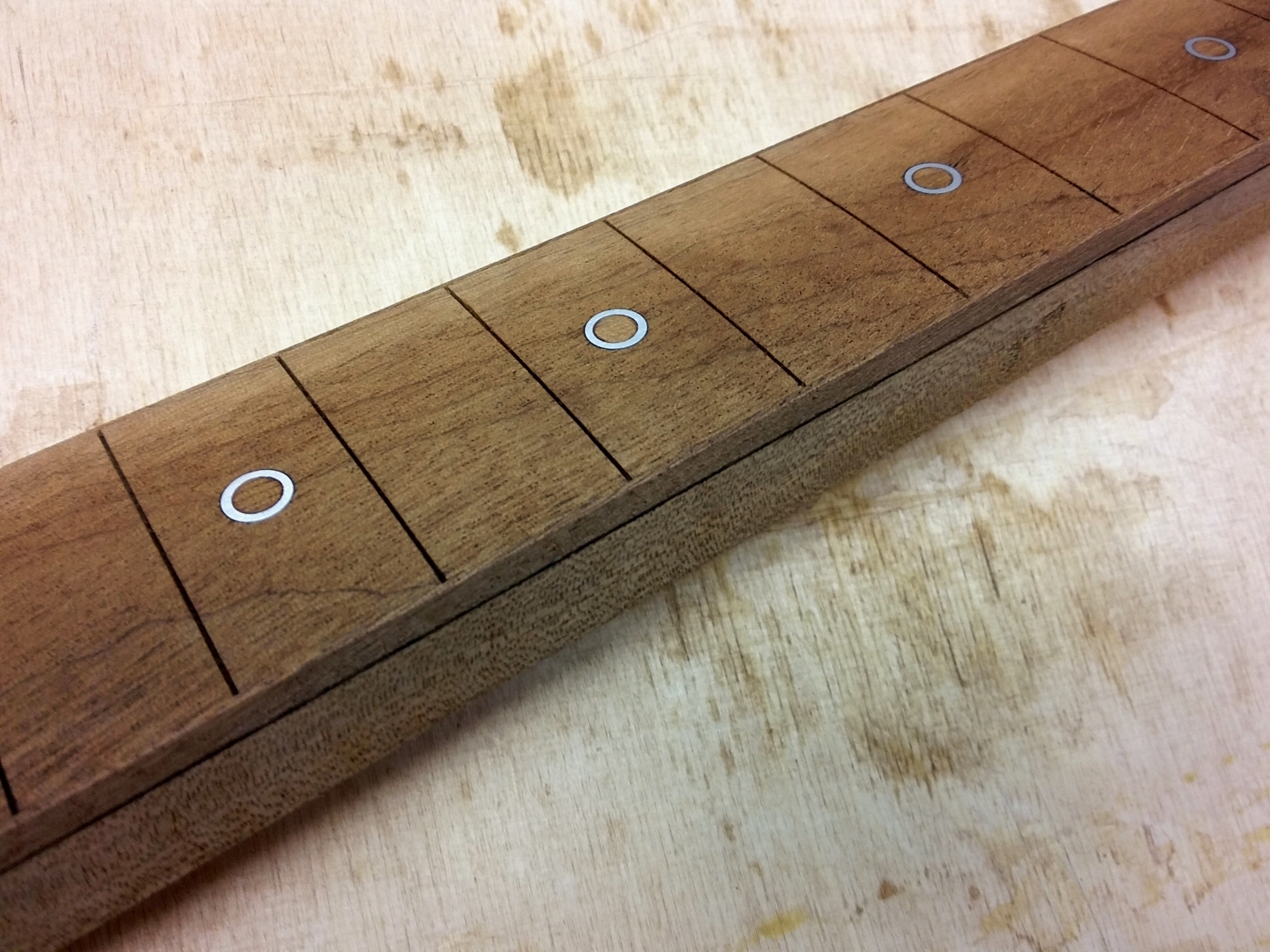

FRETBOARDMahogany (hardened)
SCALE25.5" / 645 mm
NUTBone, Compensated
1.65" / 42 mm
NECK PROFILEAsymmetric Medium V

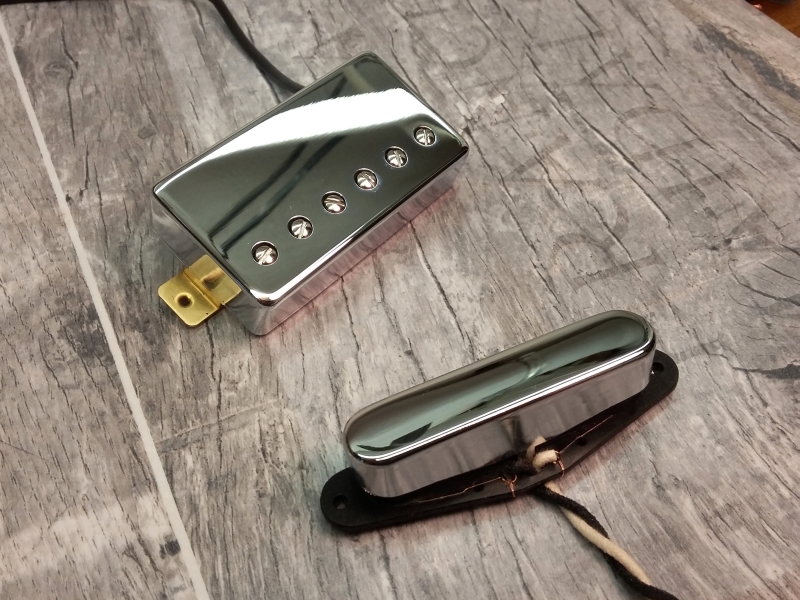

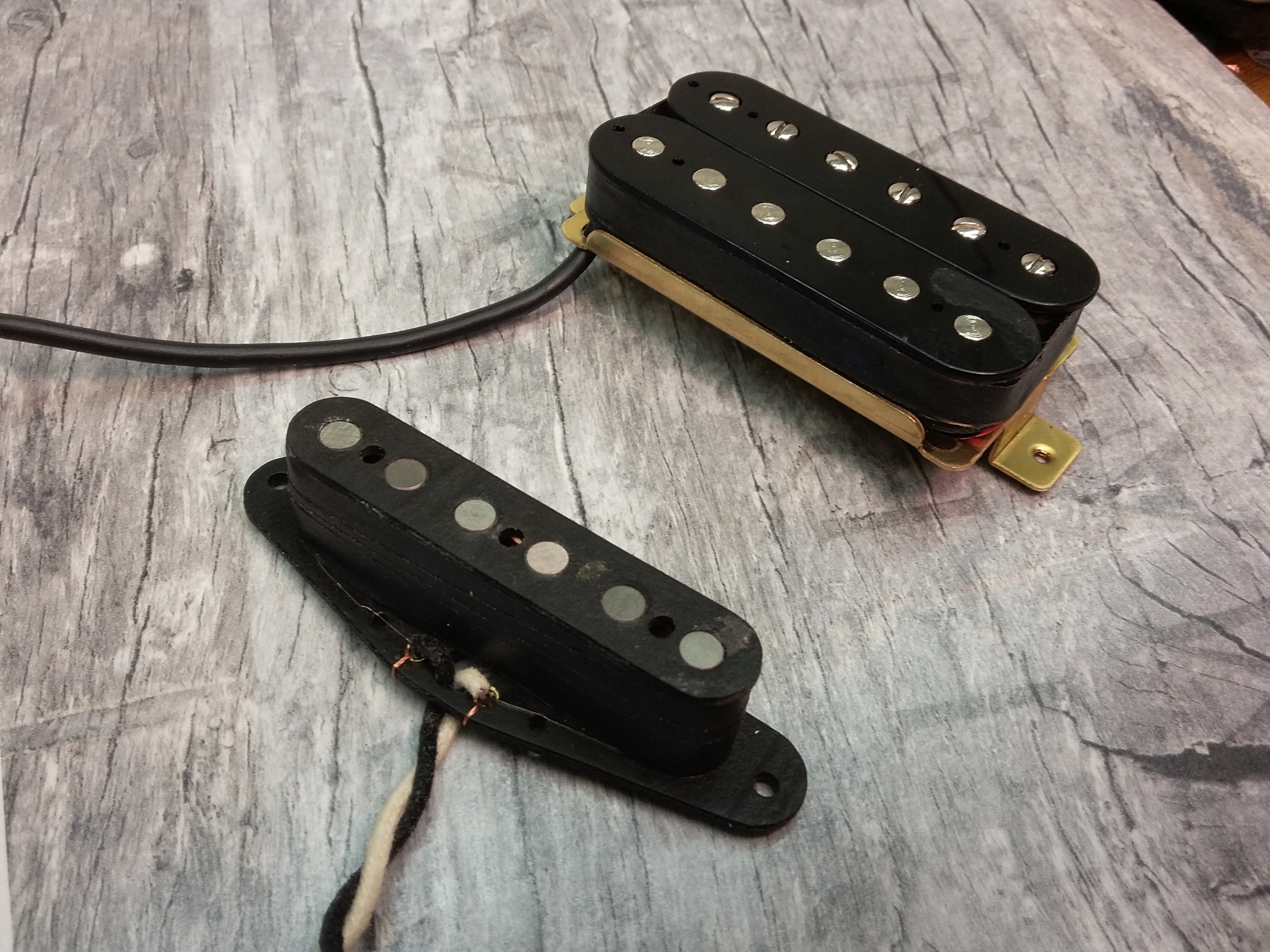

PICKUPSKämmer Guitars Single Coil @ 7.5kOhm (Neck)
Kämmer Guitars Split Humbucker @ 10.1kOhm (Bridge)

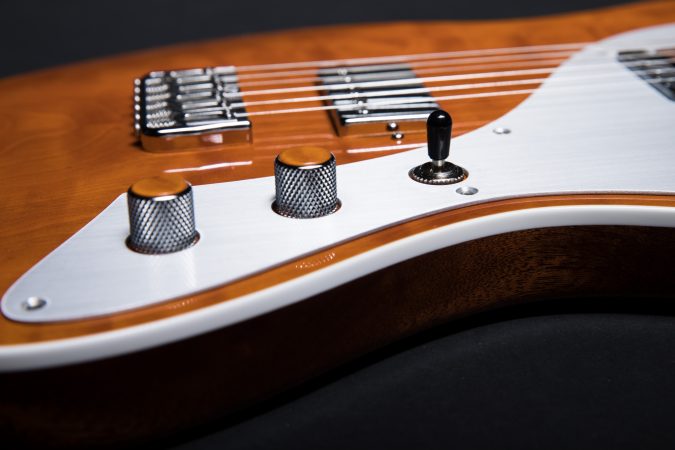

CONTROLSMaster Volume (Push Pull: Split Humbucker)
Master Tone (Push Pull: Woman Tone)
3-Way Toggle
BRIDGE Hipshot Hardtail, String Through Body

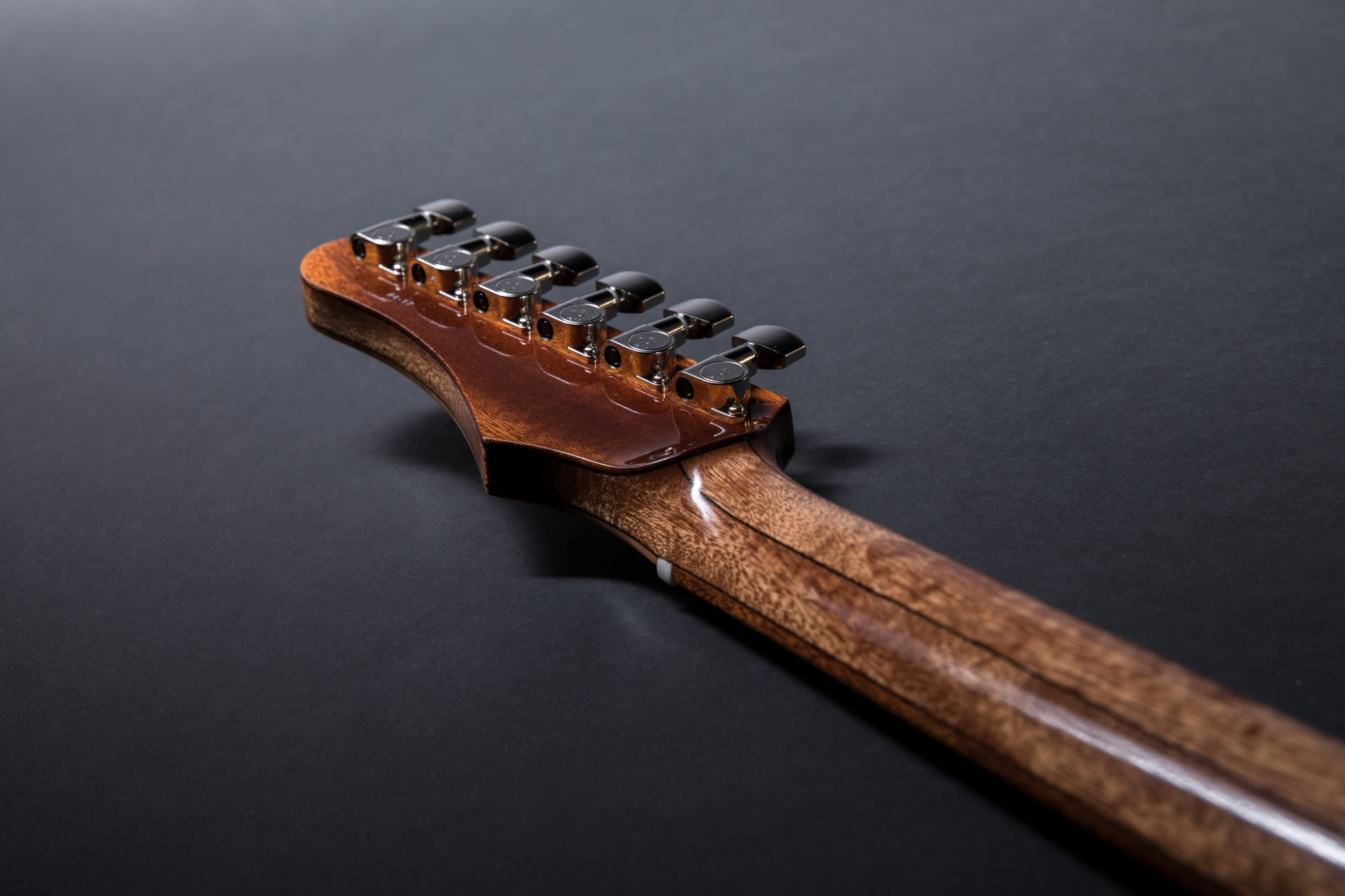

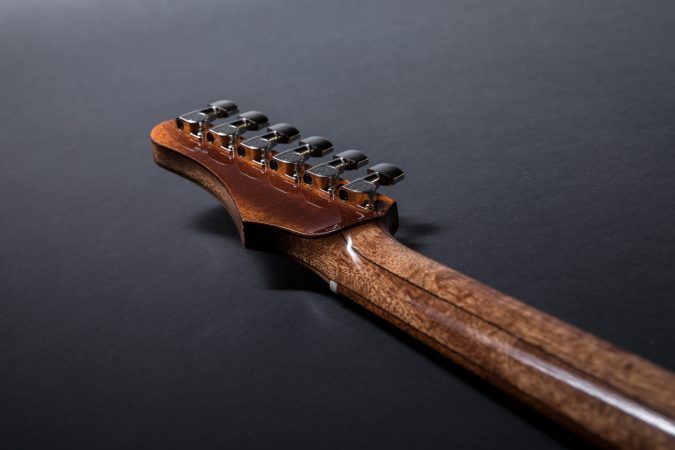

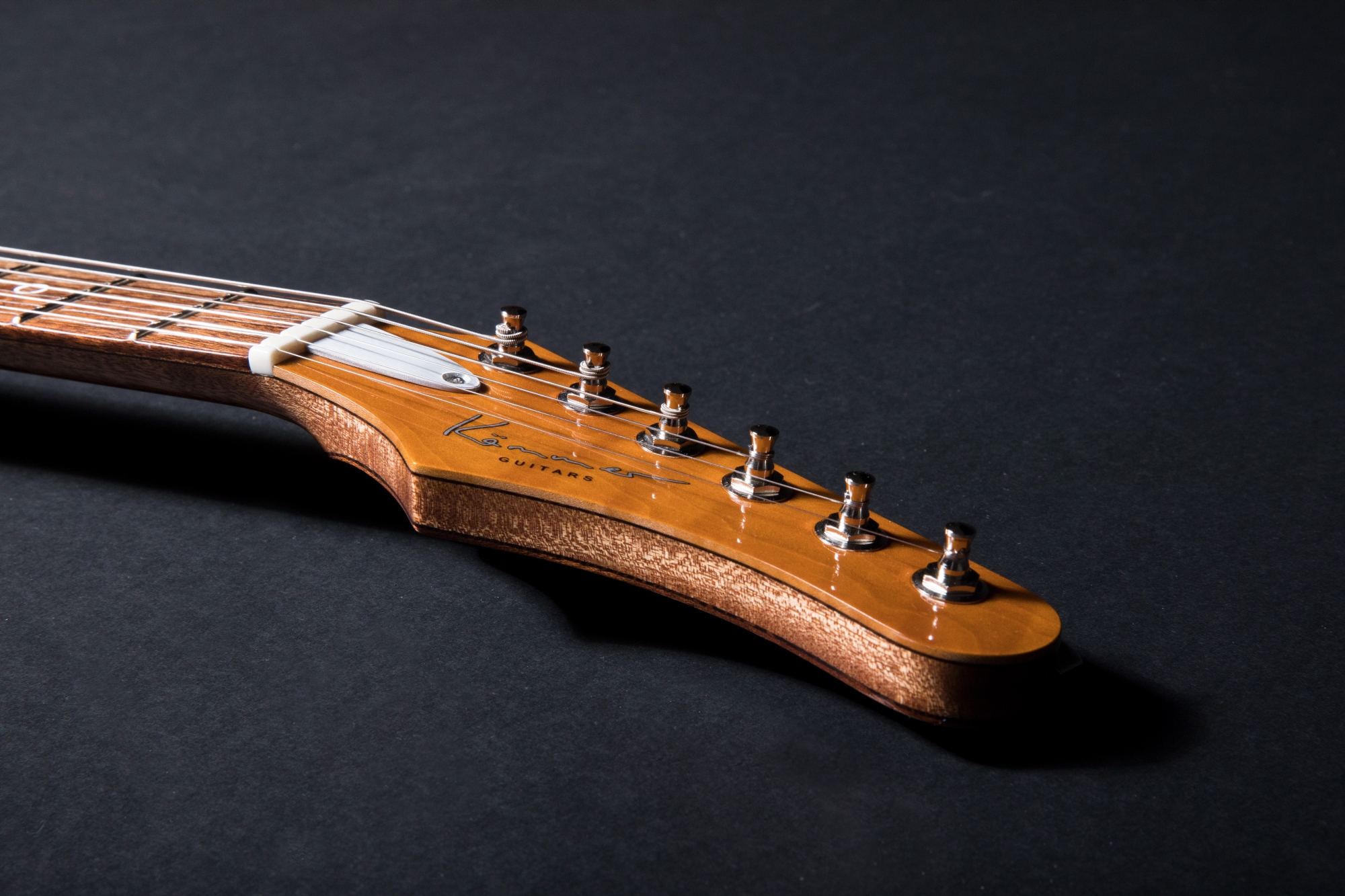

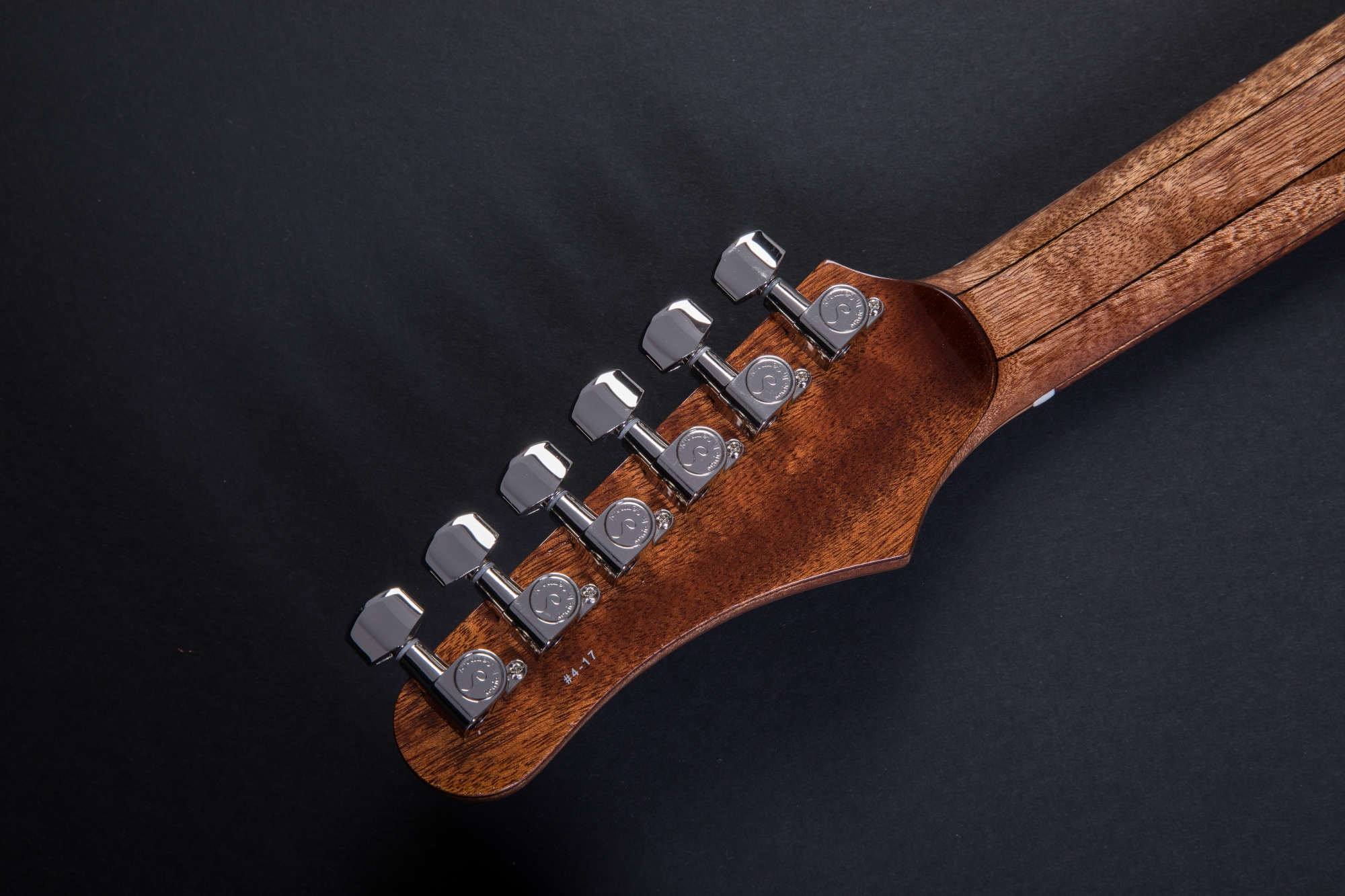

TUNERSSchaller M6
PICKGUARDAluminium

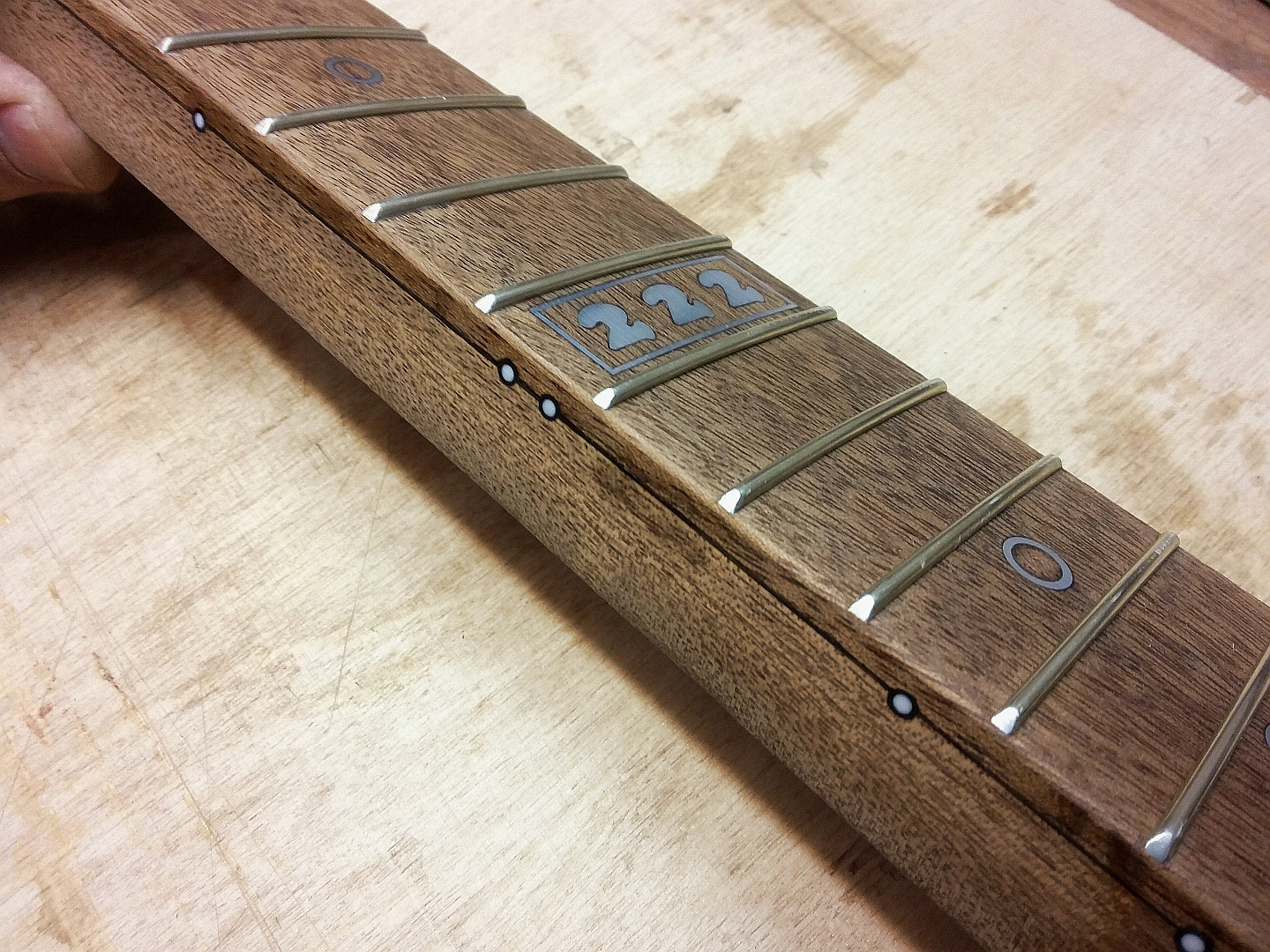

INLAYCustom '222' at 12. fret
FINISHHigh Gloss, PUR
WEIGHT2.9 kg / 6.4 lbs

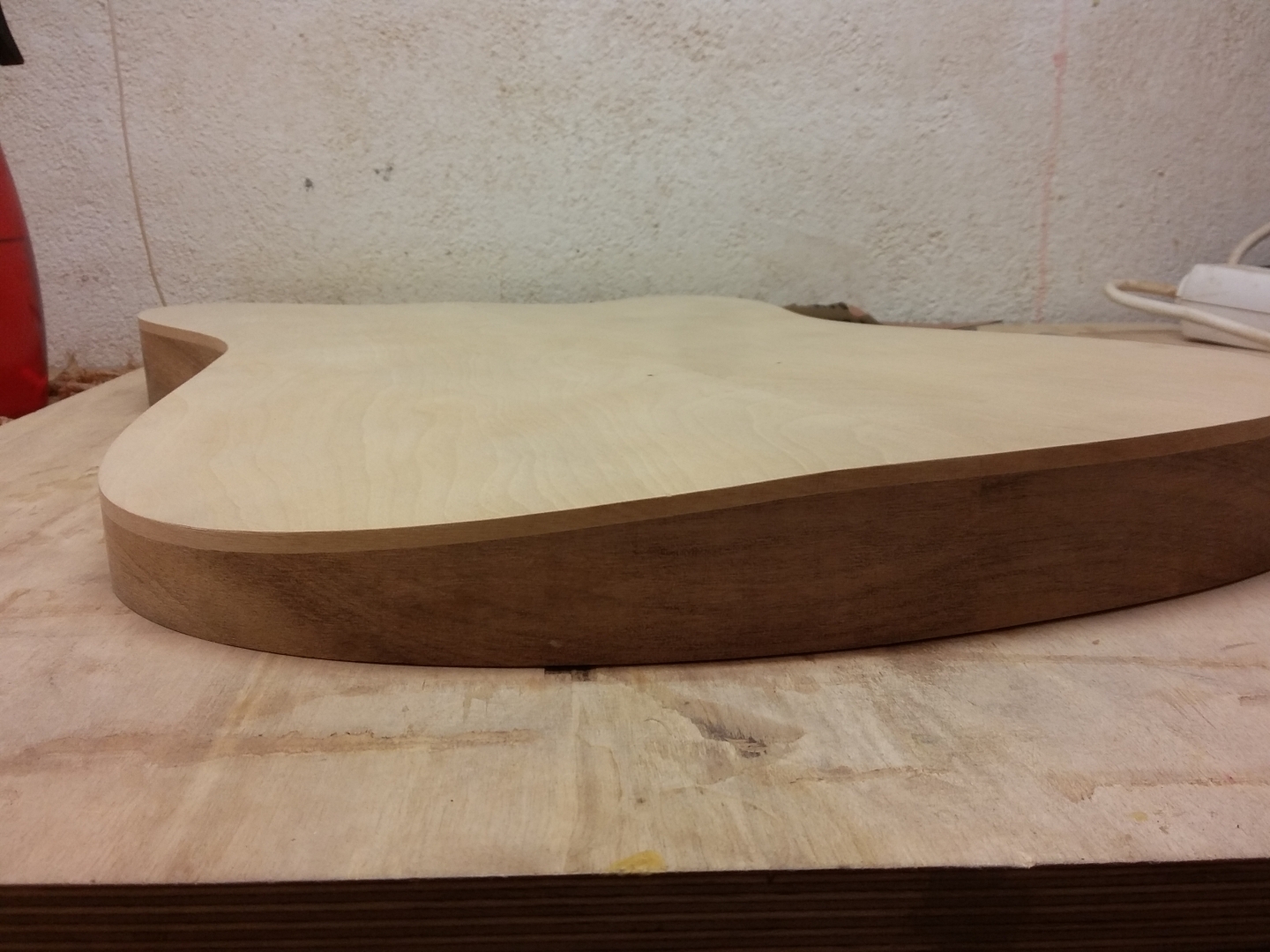

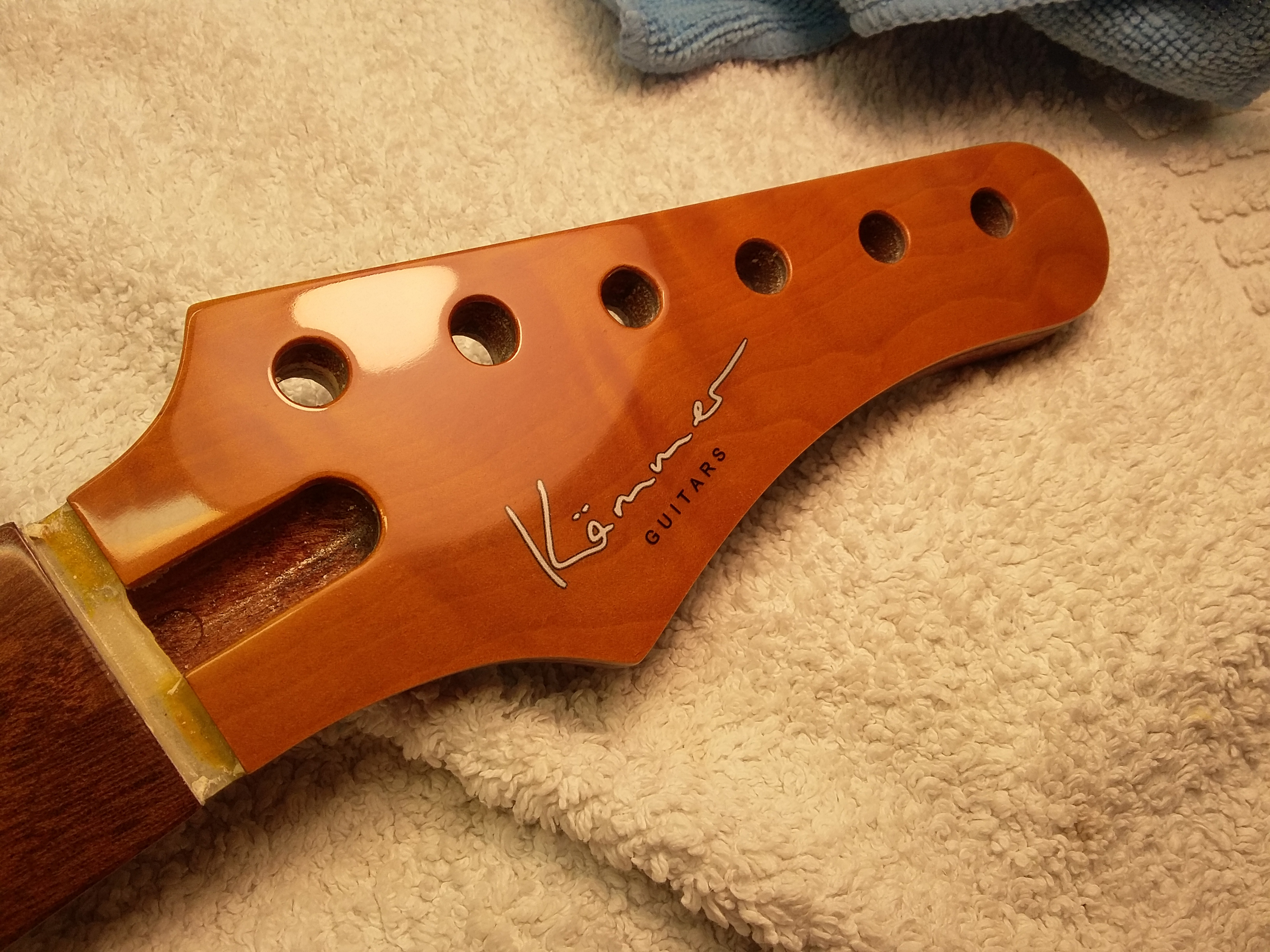

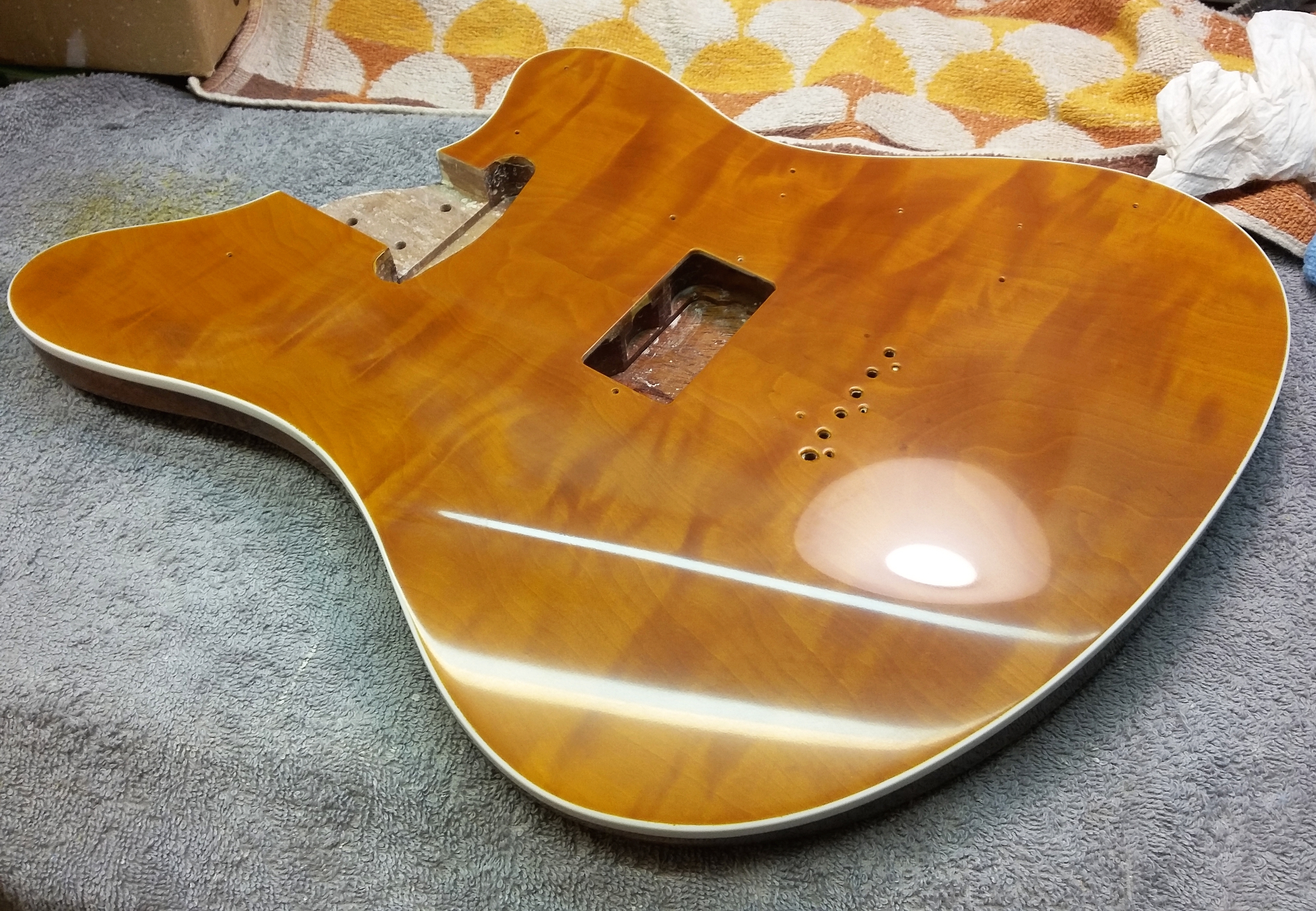

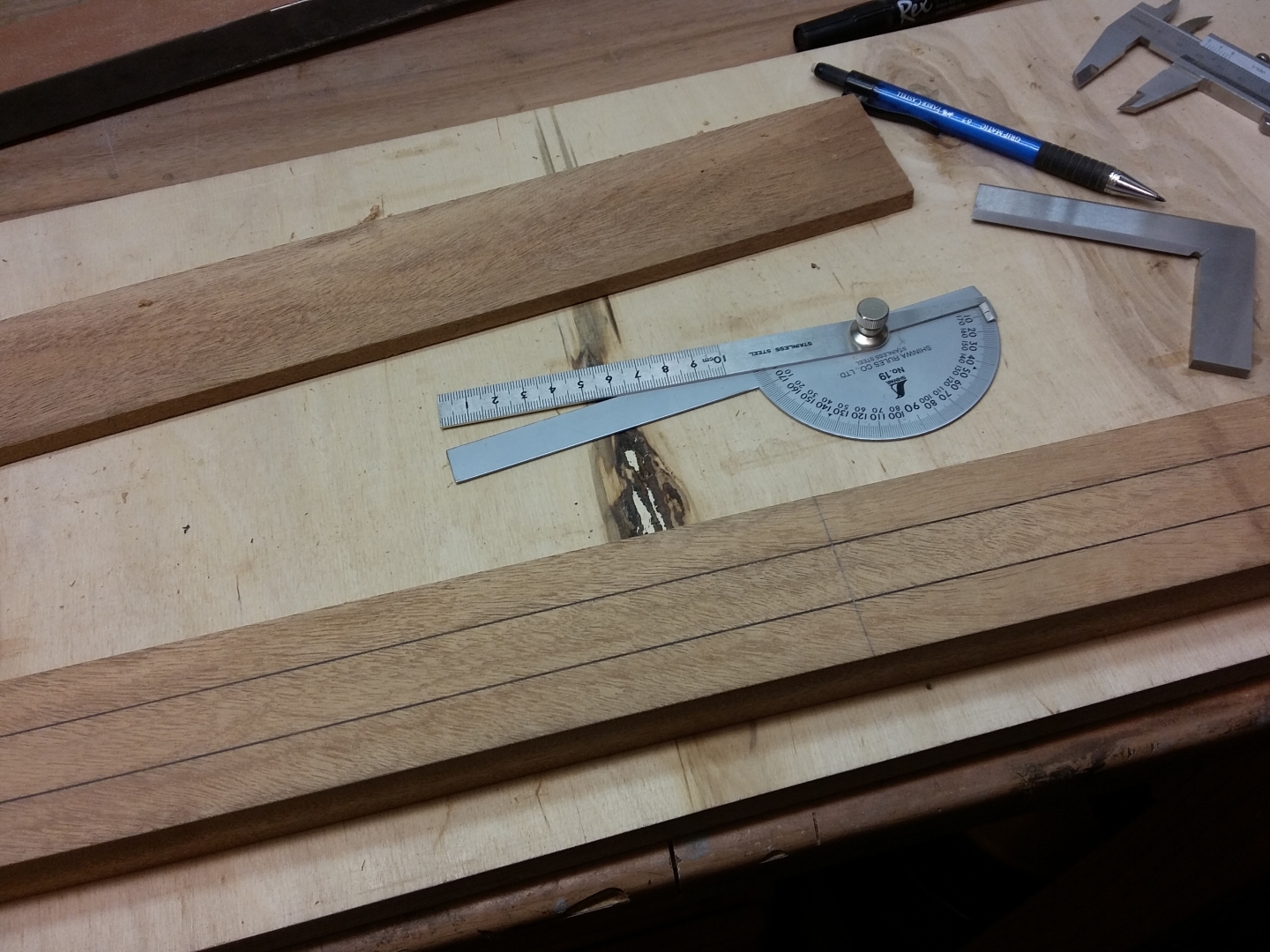

Building Process

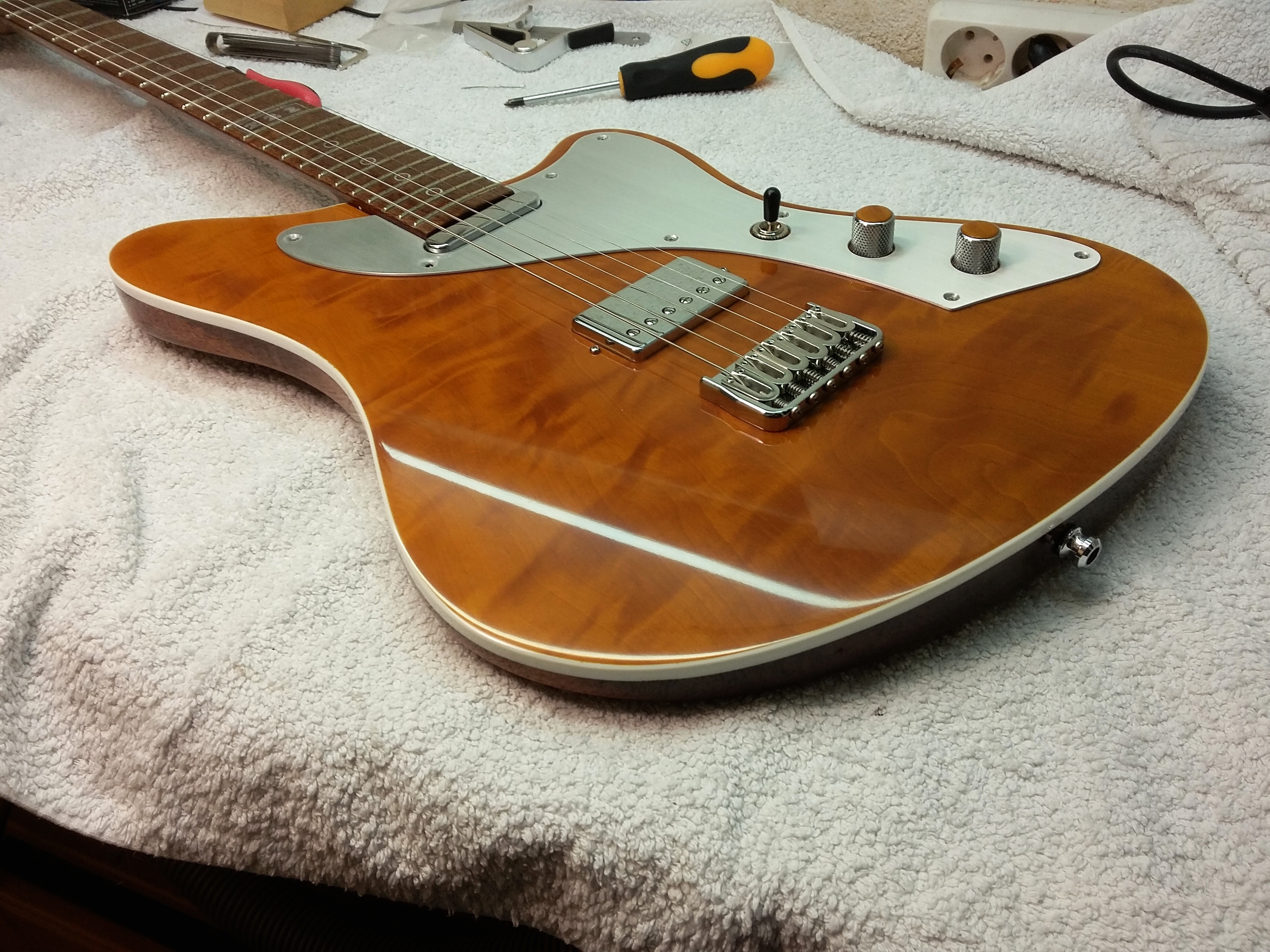

During assembly I grabbed the camera and ...
